More Intel 12th Gen Core performance numbers emerge – CPU – News Leave a comment

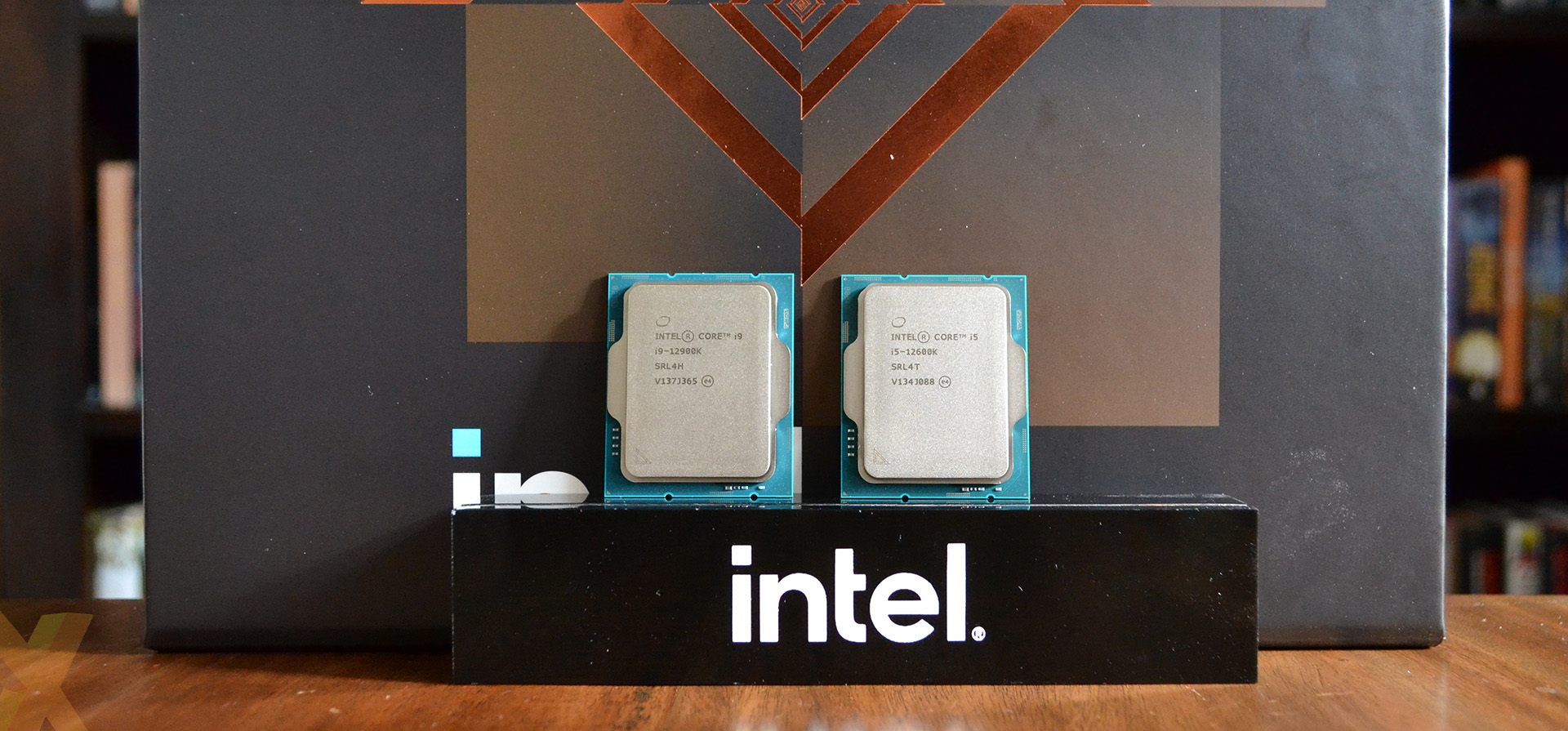

Intel Core i9-12900K and Core i5-12600K in the home
Though the Core nomenclature will observe an iterative path, make no mistake that Intel’s 12th Gen Core desktop processors, codenamed Alder Lake, are an enormous deal. These are the primary high-performance chips to be constructed from a hybrid structure which mixes quite a lot of highly effective hyperthreaded cores (Golden Cove) alongside fewer environment friendly (Gracemont) cores.
We lined this hybrid structure in some element throughout August’s Architecture Day reveal, however as we get nearer to full desktop launch, Intel duly gives extra meat on the bones. It’s most prudent to begin off with disclosed fashions after which work our method backwards to Intel-provided performance numbers.
Slides offered by Intel, click on to enlarge. F-suffixed chips don’t have any built-in graphics
We now know Intel is about to launch six unlocked 12th Gen Core chips from the off. Split equally into Core i9, Core i7 and Core i5 households, with two apiece, there’s a lot to soak up.
New Beginnings
First perceive that shifting to a 12th Gen Core platform requires funding in a Z690 sequence motherboard – different 600 sequence fashions will observe sooner or later – alongside probably a cooler improve for the model-new LGA1700 socket. Furthermore, this platform is the primary to supply help for DDR5 reminiscence, although the twin-format-supporting nature of 12th Gen Core implies that motherboard makers also can select to debut boards with conventional DDR4.
It is definitely tougher to establish performance from a specification sheet than ever earlier than. The purpose for that is the Performance and Efficient CPU core combine baked into every chip. At the underside we now have Core i5 chips with 6P and 4E cores, within the center Core i7 with 8P and 4E, and on the high Core i9 with 8P and 8E. Knowing that P cores carry hyperthreading, figuring out the full variety of threads is simple.
Even so, the highest-bin Core i9-12900K’s 24-thread complement comes up brief in opposition to rival Ryzen 9 5950X’s 32, however not all thread functionality is created equal, which is a characteristic Intel is counting on to spice up performance.
Keeping to their nature, it is sensible that Performance cores will not be solely sooner on a thread-for-thread foundation, they run extra rapidly than Efficient cores, too. That is to not say the E cores are some mere afterthoughts. Whilst their provenance is with the low-energy Atom structure, Intel reckons they’re a minimum of as quick as tenth Gen Core’s for a single thread. This comparability is considerably deceptive as all tenth Gen Core chips have performance-boosting hyperthreading current: Intel is just not strictly evaluating apples-to-apples on the above slide.
Why Go Hybrid?
The apparent query that wants answering is why has Intel ventured down this twin-core path? There is potential for performance mishaps as threads are apportioned to the completely different-functionality cores, in contrast to on a standard homogeneous design, and Intel has gone to the lengths of constructing new know-how referred to as Thread Director – the identify is self-explanatory – for maintaining performance as much as scratch.
Intel says the driving issue on this determination is maximising each performance-per-watt and performance total. Understand that 4 E cores match into the identical silicon footprint as a single P core while, mixed, delivering 60 per cent extra multi-threaded throughput. Think of it’s method: P cores are seemingly nice for single- or low-thread functions because of the enhanced Golden Cove structure and bursty, excessive-frequency method. E cores amalgamate higher to assist push peak performance in functions that may make the most of a lot of threads.
What Intel’s due to this fact saying is {that a} one-dimension-suits-all method – which has been the way in which for the final 30 years on desktop – is not probably the most environment friendly use of core assets. Backing up this assertion is an Intel-produced slide that particulars as much as 50 per cent extra MT performance than a Core i9-11900K at related energy ranges, however because of the extra amenable V/F curve on a hybrid design, along with a transfer to smaller course of now generally known as Intel 7, Core i9-12900K is ready to produce the identical peak numbers with only one quarter of the facility. Impressive.
Looking to spice up performance to the utmost, Intel not has most turbo states outlined by time-restricted PL1 and PL2 values. Instead, for fanatics, one can ignore the desired 125W TDP for the highest-line chip. Z690 motherboards will liberally disregard this restrict and invoke a 241W energy finances, enabling the chip to run at greater speeds at some stage in the appliance. AMD would not do that with its Ryzen chips, nonetheless, and sometimes has a a lot decrease complete bundle energy.
Run in its most popular 241W state, Intel trots out suitably spectacular numbers. The firm reckons Core i9-12900K is sooner than both Core i9-11900K and rival Ryzen 9 5950X for gaming, and method faster than its earlier mainstream champ for content material creation. Today’s Intel slides make no direct point out of multi-threaded performance in opposition to the Ryzen 9 5950X; you will have to attend some time longer for us to spill the beans.
Platform Potential
Rival AMD has been the trailblazer with respect to including new options to the platform. Intel is altering that with 12th Gen Core. Every chip gives 16 PCIe 5.0 lanes for both graphics or storage, although know that there are at present no units that help the usual. Furthermore, as we spoke about above, motherboards will characteristic both DDR4 or DDR5 with native speeds of three,200MHz and 4,800MHz, respectively. Expect each units of frequencies to scale a lot greater as soon as overclocking is initiated.
Z690 provides 28 growth lanes, of which 12 are of the PCIe 4.0 selection. That feels stingy appreciating that is an all-new platform. Expect to see many Z690 boards with a minimum of three excessive-velocity (PCIe 4.0) NVMe slots for storage, matching what’s accessible on AMD’s X570.
Knowing there’s more likely to be extra bandwidth site visitors between chipset and CPU, Intel doubles the velocity of the DMI hyperlink over Z590. Eight lanes stay, however velocity will increase to 16GT/s. Intel additional says it has improved the overclocking functionality and granular management over frequencies with this launch. We’ll be inspecting these claims within the full overview.
Other than the CPU, much less is at present recognized in regards to the baked-in graphics. Built on Xe know-how and that includes as much as 32 Execution Units on the desktop, performance must be just like Rocket Lake’s ostensibly related iGPU.
The Wrap
Intel is rigorously managing expectations of 12th Gen Core desktop, codenamed Alder Lake, within the run-as much as the complete reveal. Using a heterogenous CPU structure is probably the most radical transfer in over a decade. Whilst pregnant with promise of improved performance metrics, loads of questions stay. We do not but understand how properly Intel’s Thread Director know-how works in maintaining the suitable core engaged on the suitable thread. Primed for Windows 11, how properly does it do its apportioning job on mass-market Windows 10? Ought Intel have gone with a unique mixture of P and E cores? Is this design higher than a homogeneous core complicated taking on the identical area… with both fewer P cores or extra E cores? All of that is up within the air.
We moreover cannot but inform you precisely how 12th Gen Core compares with Ryzen 5000 Series throughout our slew of benchmarks – the numbers, already run, are however fascinating – and pricing for CPUs, motherboards and DDR5 largely stays an official thriller. Sources near the matter point out that Core i9-12900K would have a $589 retail priced hooked up it, dropping to $564 for Core i9-12900KF, $409 for Core i7-12700K, $384 for Core i7-12700KF, $289 for Core i5-12600K and $264 for Core i5-12600KF. If true, pricing is keener than we initially anticipated and should properly put AMD in a bind.
What we will say with out hesitation is that 12th Gen Core is probably the most highly effective mainstream CPU processor Intel has ever constructed. Such a press release stands to purpose because the generations earlier than it have been iterative enhancements over age-previous Skylake, with Intel hamstrung by twin evils of lagging course of know-how resulting in sub-optimum design implementation.
Intel 12th Gen Core breaks free of those shackles by altering the way in which the CPU portion of the chip is constructed and works. We’ll have extra in-depth evaluation, benchmarks, and dialogue on platform enhancements within the full overview quickly. Until that occurs, do not buy your subsequent performance processor simply but!
